低位濕法混合制粒機

Low wet granulator

用途

該機是制藥工業固體制劑生產中普遍使用的工藝設備之一。它具有混合、制粒等多種功能，廣泛應用于制藥、食品、化工等行業。

APPLICATION

The machine is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, granulating, etc. It is widely used in such industries as medicine, chemical industry, food, etc.

原理

物料通過加料機或真空上料系統加入攪拌容器中，經攪拌槳作多維切割呈流動狀態得到充分混合。然后經噴槍系統或手工注入粘合劑，在攪拌槳和切刀的作用下制成均勻顆粒。顆粒通過出料口出料并轉到下一工序。

PRINCIPLE

The materials are charged into the mixing vessel by the charging machine or vacuum charging system, and flow under a multi dimensional shearing status after mixing so that sufficient mixing is realized. The adhesive sprayed by the spray gun or injected manually will make the materials into even granules under the action of the mixing paddle and cutter. The granules will be discharged from the discharging port and transferred to the next procedure.

特點

◆本機采用臥式圓筒構造或圓錐形結構，結構合理。

◆充氣密封驅動軸，清洗時可切換成水。

◆流態化造粒，成粒近似球形，流動性好。

◆較傳統工藝減少25%合劑，干燥時間縮短。

◆每批次干混2分鐘，造粒1-4分鐘，工效比傳統工藝提高4-5倍。

◆在同一封閉容器內完成，干混-濕混-制粒，工藝縮減，符合GMP規范。

◆整個操作具有嚴格的安全保護措施。

◆主藥與輔料差異大時，仍能達到均勻結合，無分層現象。

FEATURES

This machine adopts horizontal cylinder structure or conical structure with reasonable structure

Inflatable sealed drive shaft can be switched to water during cleaning

Fluidized granulation, granules are approximately spherical and have good fluidity

25% less adhesive than traditional processes, shortening drying time

Each batch is dry mixed for 2 minutes, granulated for 1-4 minutes, and the work efficiency is 4-5 times higher than the traditional process

Complete in the same closed container, dry mixing-Wet mixing granulation, the process is reduced, in line with gMP regulations

The entire operation has strict safety protection measures

When the difference between the main drug and the auxiliary material is large, the uniform combination can still be achieved without stratification

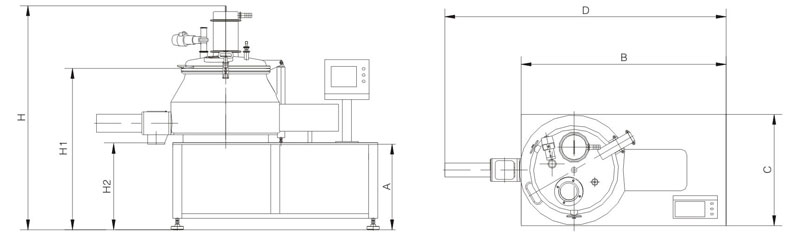

主要技術參數 MAIN TECHNICAL PARAMETERS

本公司可按用戶特殊要求定制生產，如有變動，恕不預先通知！

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance.
